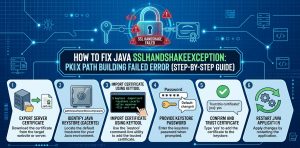

How to Fix Java SSLHandshakeException: PKIX Path Building Failed Error (Step-by-Step Guide)

Introduction: How Do You Fix Java SSLHandshakeException: PKIX Path Building Failed?

Java throws SSLHandshakeException: PKIX path building failed when it cannot establish a trusted certificate chain for a remote TLS connection. The most common causes include a missing intermediate certificate, an untrusted certificate authority, an outdated Java truststore, or an incorrectly configured custom truststore. The correct fix is to identify the missing link in the certificate chain and correct the certificate or trust configuration.

This error frequently appears when Java applications connect to HTTPS APIs, payment gateways, external authentication services, SMTP servers, cloud endpoints, or internal applications secured with TLS. A website may open successfully in a browser while the same endpoint fails inside a Java application because the browser and the Java runtime may use different certificate stores and chain-building behavior.

What Does the Java PKIX Path Building Failed Error Mean?

The Java PKIX path building failed error means the Java certificate-validation process cannot construct a trusted certification path from the server’s presented certificate to a trusted root certificate authority. PKIX refers to the Public Key Infrastructure X.509 framework used to validate certificate paths.

During a TLS handshake, the remote server presents its certificate and may provide intermediate certificates. Java validates the certificate signatures, validity periods, certification path, and applicable trust rules. If Java cannot connect the presented certificate to an accepted trust anchor, the handshake can fail before the application exchanges HTTP requests or receives an API response.

The exception often contains sun.security.validator.ValidatorException and sun.security.provider.certpath.SunCertPathBuilderException. These messages identify a certificate-path validation failure, not necessarily an expired SSL certificate. The certificate may be valid, but Java might lack the intermediate CA, trust the wrong certificate store, or run with a trust configuration that does not recognize the issuing authority.

Why Does Java Throw SSLHandshakeException When an API Works in a Browser?

A browser and a Java application do not necessarily use the same trust configuration or certificate-chain construction process. Browsers may use operating-system trust stores, their own certificate databases, or additional mechanisms for obtaining missing intermediates, while Java generally validates the chain using the trust configuration of the running JVM and its TLS implementation.

A common production scenario occurs when a developer tests an API in Chrome and receives a successful response, but a Java application running on Linux reports PKIX path building failed. The browser’s success does not prove that the server presents a complete chain or that the Java runtime trusts the issuing CA. Administrators must inspect the certificate chain from the application’s actual execution environment rather than rely solely on browser results.

What Are the Main Causes of SunCertPathBuilderException?

An incomplete server certificate chain is a common cause of SunCertPathBuilderException. A TLS server should present its leaf certificate and the intermediate certificates required to build the certification path. If the server omits a necessary intermediate, Java may fail to build a path to a trusted root even when the certificate appears valid in a browser.

An outdated Java truststore can also trigger the error. Older JDK installations may not contain a root CA that the remote service now uses, particularly after certificate-authority changes or infrastructure migrations. Updating Java may resolve the issue when the runtime genuinely lacks the required trust anchor, but administrators should verify the actual certificate chain before upgrading or changing trust settings.

A custom truststore can cause the same failure when the application specifies a truststore that lacks certificates available in the default Java cacerts store. This can happen through JVM options such as -Djavax.net.ssl.trustStore, application-server configuration, container environment variables, or framework-specific SSL settings. The application may therefore fail even though the system has an otherwise functional Java installation.

Other possible causes include a private certificate authority that has not been trusted by the application, a TLS-inspecting proxy that replaces the original server certificate, a recently renewed certificate with a changed issuing chain, or an application that uses a different Java installation than the administrator expects. Certificate expiration, hostname mismatch, and protocol incompatibility can also break TLS connections, but they produce distinct validation or handshake symptoms and should not automatically be treated as PKIX path-building failures.

How Do You Diagnose the Error Before Changing Certificates?

Start by identifying the exact HTTPS hostname, port, API endpoint, Java process, and runtime version involved in the failure. Confirm whether the error affects one endpoint or every external TLS connection. If only one endpoint fails, investigate its certificate chain and issuing CA first; if several unrelated endpoints fail, investigate the JVM truststore, runtime version, proxy configuration, and application-level SSL settings.

Check the Java version used by the failing application rather than relying on the version installed in your interactive shell. Services running under Tomcat, systemd, containers, or hosting control panels may use a different JAVA_HOME, a bundled JRE, or separate startup parameters. A truststore change made to the wrong Java installation will not fix the affected application.

Inspect the remote certificate chain using a trusted certificate-inspection tool or the TLS diagnostics available in your environment. Verify the certificate subject, issuer, validity dates, Subject Alternative Name entries, and intermediate certificates. Compare the chain served by the endpoint with the chain expected by the certificate authority. For reference, Oracle documents certificate inspection and certificate import operations in its official Java keytool documentation.

How Do You Fix an Incomplete SSL Certificate Chain on the Server?

Correct the certificate chain on the server when the remote endpoint fails to provide a required intermediate certificate. Install the certificate bundle supplied by the certificate authority in the web server, reverse proxy, API gateway, load balancer, or application server that terminates TLS. The exact configuration depends on the platform, but the goal is to ensure that clients receive the leaf certificate and required intermediates.

Do not routinely import the remote server’s leaf certificate into every Java client as a workaround for an incomplete public certificate chain. That approach can create unnecessary maintenance and trust problems, especially when the server renews its certificate. Fixing the chain at its source allows Java clients to validate the certificate through the intended public trust hierarchy.

After correcting the server configuration, test the endpoint again from the environment where the Java application runs. If the chain now validates successfully and Java already trusts the issuing root, the application may work without any client-side truststore modification. Certificate-authority documentation, such as Let’s Encrypt’s explanation of certificate chains, can help administrators understand how leaf, intermediate, and root certificates relate to one another.

How Do You Fix PKIX Path Building Failed by Updating the Java Truststore?

Update the Java trust configuration when the remote certificate chain is correct but the JVM does not trust the required certificate authority. First, identify the truststore that the application actually uses. Java installations commonly include a cacerts truststore, but applications can use a separate JKS or PKCS12 file configured through JVM properties or application-server settings.

If the root CA is absent because the JDK is outdated, upgrade to a currently supported Java release with an appropriately maintained CA truststore after testing application compatibility. If the endpoint uses an organization-approved private CA, obtain its certificate from the organization’s trusted PKI administrator and validate its fingerprint through an independent, trusted channel before importing it. Never import a certificate simply because it appeared in an error message or was downloaded from an unverified source.

When a dedicated truststore is required, import only the verified CA certificate needed for the intended trust relationship. Oracle’s keytool -importcert command supports importing certificates into a specified keystore. The following example illustrates the operation for an administrator who has already verified the CA certificate.

keytool -importcert \
  -alias organization-root-ca \
  -file organization-root-ca.pem \
  -keystore application-truststore.jks

The command prompts for the destination truststore password when necessary. Confirm the certificate identity and fingerprint before accepting the import, and use the truststore path configured for the affected application. Oracle explains certificate import, truststore entries, and certificate-path validation in the Java keytool reference.

How Do You Check Whether Java Uses the Wrong Truststore?

Inspect the application’s JVM startup configuration for javax.net.ssl.trustStore and related SSL properties. If this property points to a custom truststore, Java may not use the default truststore you inspected or updated. Confirm that the file exists, the service account can read it, the configured password is correct, and the store contains the expected CA certificates.

Also check whether the application server, Java framework, or HTTP client defines its own SSL context. Some applications load a truststore programmatically or use a library-specific configuration that overrides the JVM defaults. Changing the system-wide cacerts file will not solve the problem if the application explicitly loads a different truststore.

Use a controlled restart or application-specific reload after making an approved configuration change, because many Java applications load trust material during startup. Test the original API call afterward and review the resulting exception if it persists. Avoid copying truststores between unrelated JDK installations without checking their formats, contents, ownership, and maintenance requirements.

How Do You Diagnose TLS Failures in Tomcat, Docker, and Cloud Environments?

In Apache Tomcat, identify the Java runtime used by the Tomcat service and determine whether the application configures a custom SSL context or truststore. The TLS configuration for an inbound HTTPS connector is different from the trust configuration used when a deployed application makes an outbound HTTPS request. Changing Tomcat’s inbound server certificate will not necessarily fix an outbound API call that fails certificate validation.

In Docker and other container environments, inspect the Java runtime and truststore inside the running container rather than only on the host. A container image may include an older JDK, a minimal operating-system CA package, or a custom truststore that differs from the host’s configuration. Rebuild or update the image through the normal deployment process after validating the required CA certificates, and ensure that the fix survives container replacement.

In cloud environments, investigate the complete TLS path between the application and the remote endpoint. A service mesh, outbound proxy, API gateway, or enterprise TLS-inspection device may present a certificate issued by an internal CA rather than the public CA expected by the application. If the organization intentionally intercepts TLS, the appropriate internal CA must be trusted according to security policy. Otherwise, correct the proxy or gateway configuration so the application receives the expected certificate chain.

How Can You Verify the Fix Without Disabling SSL Validation?

Confirm that the original API request succeeds from the same application environment and under the same Java runtime that produced the exception. Verify that the certificate chain reaches a trusted root, the certificate remains within its validity period, and the hostname matches the certificate’s Subject Alternative Name entries. If the application still fails, capture the complete exception chain and determine whether the new error identifies a different issue, such as hostname verification or protocol negotiation.

For deeper diagnosis, enable Java SSL debugging temporarily in a controlled environment. The JVM option -Djavax.net.debug=ssl,handshake,trustmanager can provide information about the TLS handshake and trust decisions. Diagnostic output may expose hostnames, certificate details, and other operational information, so restrict access and remove verbose debugging after the investigation.

Never use a trust-all certificate manager, disable hostname verification, or turn off TLS certificate validation as a production fix. Those changes remove important protections against impersonation and man-in-the-middle attacks. A successful connection is not a secure resolution if the application no longer verifies the identity of the remote service.

What Should Infrastructure Teams Learn From a Production PKIX Failure?

An illustrative production scenario shows why diagnosis matters more than repeatedly importing certificates. Imagine a Java-based order-processing service that starts failing against a payment API shortly after the API provider renews its TLS certificate. The browser test succeeds, but the Java service reports SunCertPathBuilderException. The initial symptom alone does not establish whether the provider omitted an intermediate, changed its issuing CA, or exposed a truststore limitation in the application.

The infrastructure team should compare the certificate chain before and after the renewal, confirm the JVM and truststore used by the service, and test the endpoint from the same network path. If the provider omitted an intermediate certificate, the team should request or implement a correction at the TLS termination point. If the chain is valid but the approved CA is missing from a dedicated truststore, the team should deploy the verified CA through the normal configuration-management process.

The team should measure the time to identify the cause, failed-request rate, recovery time, and whether the fix remains effective after an application restart or container redeployment. These are investigation metrics, not universal performance improvements; a certificate-path correction does not inherently reduce latency by a fixed percentage. To reduce recurrence, infrastructure teams can monitor certificate expiry, track Java runtime versions, maintain approved truststores, and include outbound TLS checks in deployment validation.

How Can Managed Infrastructure Support Prevent Recurring Java TLS Failures?

Certificate-chain errors often expose a gap in certificate lifecycle management, runtime maintenance, or application observability. Teams operating multiple Java services should document which component terminates inbound TLS, which truststore each application uses for outbound connections, and how certificate changes reach production. Automated checks can detect certificate expiry and chain changes, while configuration management can distribute approved CA updates consistently across virtual machines and containers.

Organizations that operate business-critical applications can also benefit from centralized monitoring and controlled incident response. Relevant ACTSupport resources include Linux Server Monitoring Metrics for Enterprise Environments and Linux Server Management Challenges for Enterprise IT. These resources provide related infrastructure context for teams building more reliable server operations.

Conclusion: What Is the Safest Way to Fix Java PKIX Path Building Failed?

The safest way to fix Java PKIX path building failed is to identify why the certificate chain cannot reach a trusted root, then correct the server chain, Java truststore, or network trust configuration responsible for the failure. Begin with the actual JVM and endpoint, verify the certificate chain, and make only the trust changes justified by the evidence.
